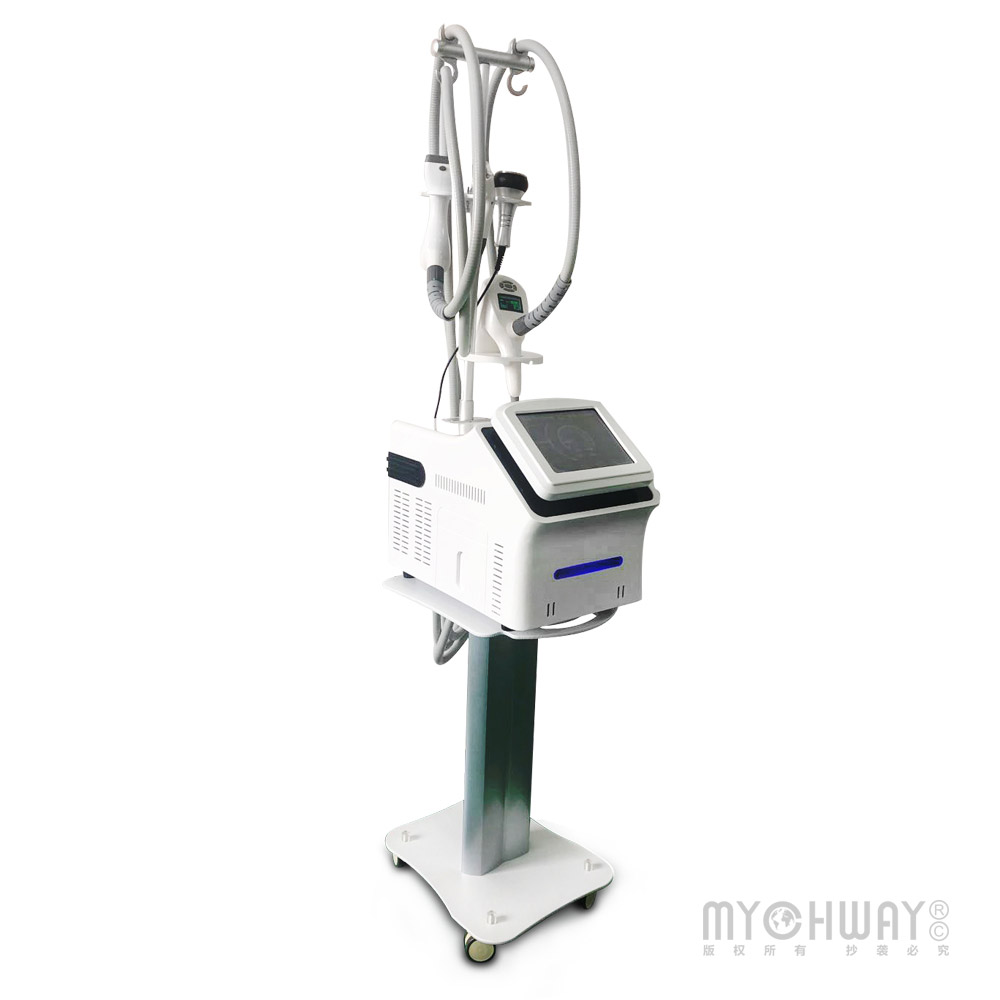

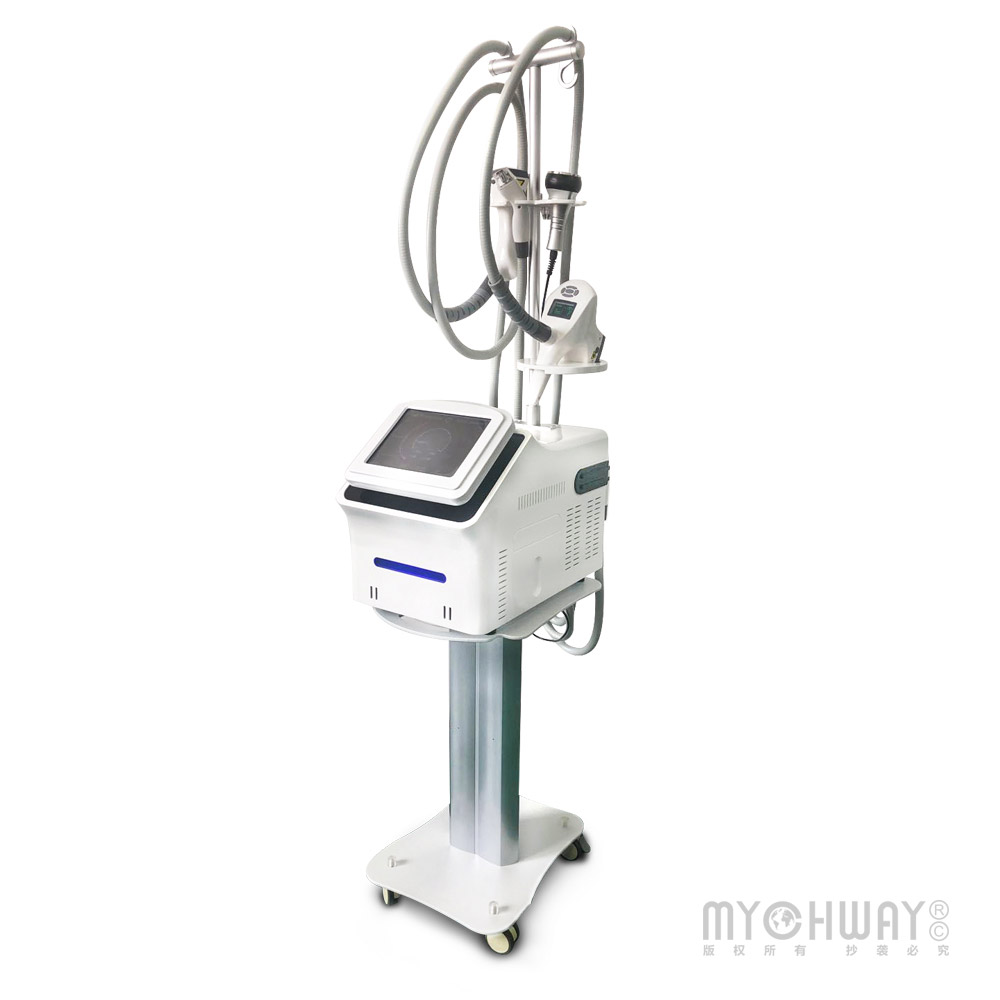

Professional 3 Vacuum Roller R-F Cavitation Body Slimming Skin Care Equipment

Treatment Principle And Functions

1) Infrared laser reduces skin impedance by heating skin and RF energy penetrates deeply into connective tissue. The synergistic combination of infrared laser and conducted RF energies increases the oxygen intracellular diffusion by heating the skin.
2) Vacuum plus specially designed rollers manipulate leads RF penetration to be even 5-15mm. At the same time, vacuum and roller mechanical tissue manipulation nips and stretches fibrillar connective tissue, effectively breaks down subcutaneous fat as well as extruded capillary vessel, Increase lymphatic drainage, promotes metabolism and reduces or shrinks the size of the actual fat chamber and greatly improved body contouring effect.
3) The technology that vacuum folds skin makes RF energy penetrate a specific folded skin, greatly improve effect and safety, even for the upper eyelid area treatment.

Suggestions About Operating Modes For Beauty Salon

1) Adopt course of treatment card to operate so that you could get persistent therapeutic effect;
2) To activate cards for physical therapy on body, relieve sub healthy, relieve ache and ankylosis of shoulder, neck, waist and belly.

How To Install The Machine?

1) Use relative screws to install the aluminum holder and other 2 acrylic accessories hanging racks firstly.
2) Handpieces’ installation and uninstall
A: installation: connect No. 1/2/3/4 handpiece to A/B/C/D port from left to the right relatively, as picture shows
B: connect 40K cavitation head to the port on the back of the machine, as picture shows
3) Connect the power cord and install earth line
4) Turn on the red switch on the back of the machine
5) Select relative button of hand piece to be treated for parameters adjustment, the default hand piece is hand piece 1.
6) Press the switch button to light up the screen.
7) Press “ENTER” of hand piece to work

Notes After Treatment

1) Do not use cold water to clean treated area in 8 hours after treatment (except face）
2) Do not do massage on relative area
3) Avoid solarization in the first week after treatment
4) Can use milky skin care product on treated area
5) Do not eat raw, cold or spicy food in 8 hours after treatment

Specifications

LCD screen:
1) Display screen: 10.4/8″ Chromatic Screen
2) Display screen of handpiece
Display screen on handpiece 1: 2.4″
Display screen on handpiece 2: 1.9″
Working mode: Pulse
Pulse width: 0.5s-7.5s
Negative pressure:
1) Absolute value: 80kPa -10kPa (60.8cmHg - 7.6cmHg)
2) Relative value: 20kPa -90kPa (15.2cmHg – 68.4cmHg)
Rev of roller: 0-36 rpm
Working mode for roller:4 types
Safety checking: Real time on line
RF frequency:1MHz
RF energy density: Max: 60J/cm
Laser wavelength: 940nm
Laser power: MAX 20W
Laser wavelength: 940nm
Laser power: MAX 20W
Rated input power 750VA
Mode of power supply: AC230V±10%，50Hz±1Hz/ AC110V±10%，60Hz±1Hz (Optional)
G.W.: 45kg
Packing size: 69*63*51cm
Packing method: Flight case

Package Listing

No. 1 big vacuum RF laser head for body * 1
No. 2 vacuum RF laser head for arms * 1
No. 3 vacuum RF laser head for face * 1
40K cavitation head * 1
Power cord * 1
Rotary knob screws * 12
Acrylic accessories hanging rack * 2
Aluminum holder * 1
Acrylic accessories hanging rack screws * 6
Clothes for treatment * 2
