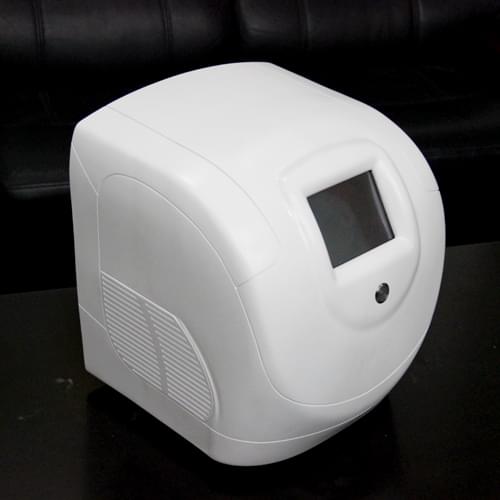

IPL Hair Removal Skin Rejuvenation Beauty Machine with 6 Laser Tips

Parameters

Screen :5.6TFT Color Touch Screen

Intense pulse light: IPL

Spectra:420nm-1200nm /530nm-1200nm/ 560nm-1200nm/ 610nm-1200nm/ 690nm-1200nm

Filter:Interchangeable filters

Crystal:Sapphire

Spot size:40mm*8mm

Energy density:50J/cm2 (Max)

Pulse sequence:1-6 (Independently adjustable)

Pulse duration:0-20ms (0.1ms)

Pulse delay:0-100ms (1ms)

Delay of continual irradiance:1s-3s (0.5s)

Handpiece connector:Fast connector

Cooling system:Water cooling and semiconductor cooling

Rated input power:1500VA

Electrical requirement:AC230V + -10%,50Hz + - 1Hz or AC110V + -10%, 60Hz + - 1Hz (Optional)

Applications

1.Rejuvenation
2.Remove epidermal pigmentation
3.Painless hair removal
4.vascular and acne removal

Advantages

1. 5.6 inch Touchable and chromatic screen;

2. Handpiece with 5 different inter changeable filters maximizing profits;

3.6 independent changeable pulse setting suitable for different skin types;

4. Handpiece with imported sapphire crystal ensuring 50,000 effective shots;

5. Recommanded default parameters for 5 skin types and 3 kinds of hair color easing operation efficiently

Working Condition

Environmental temperature of operation:10ºC to 35ºC;
Relative humidity:<=70%;
Air pressure:860hPa to 1060hPa;
Environment request:avoid direct radiation of intense light ;
Cooling water:pure water, distilled water or water without hydronium;
If the temperature in the room is too low,or the equipment have not been used for many days, the
temperature of the whole system must recover to 15 ºC or higher. And then start the equipment.

Number of Handpiece

A in picture 33 would show kind of handpiece.
610nm ,690nm,530nm,420nm,490nm,560nm are spectras;
610nm/690nm---Hair Removal (HR);
420nm---Acne Removal (AR);
490nm---Pigment Removal (PR);
560nm---Vascular Removal (VR)
530nm---Skin Rejuvenation and Pigment Removal (SR, PR);
